Safety and hygiene for pharmaceutical manufacturers

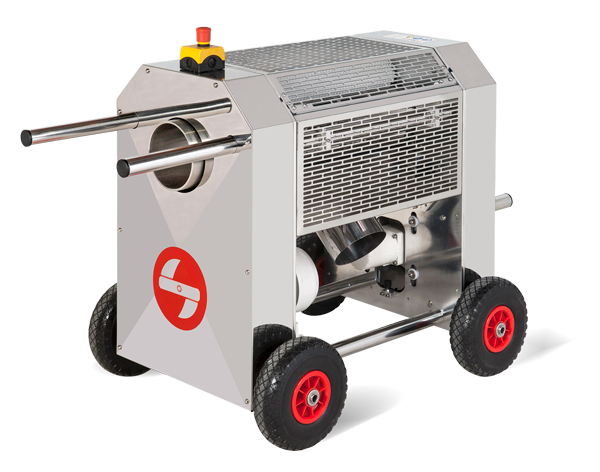

MT Tumbler 500 MED has the most modern technology for pruning medicinal herbs.

The design, materials and coatings made entirely of stainless steel are suitable for manufacturers who must meet the most demanding cGMP requirements.

In accordance with EU regulations 2023/2006, EC 1935/2004 on good manufacturing practices for the production of food contact materials and EU directives 2006/42 / CE 2014/30 / EU.

Stainless steel

GMP compliant

All parts of the trimmer through which the product passes or has contact are made entirely of stainless steel. This is also a material used for other parts such as the top cover, handles and screws, etc. All parts are certified for use in food.

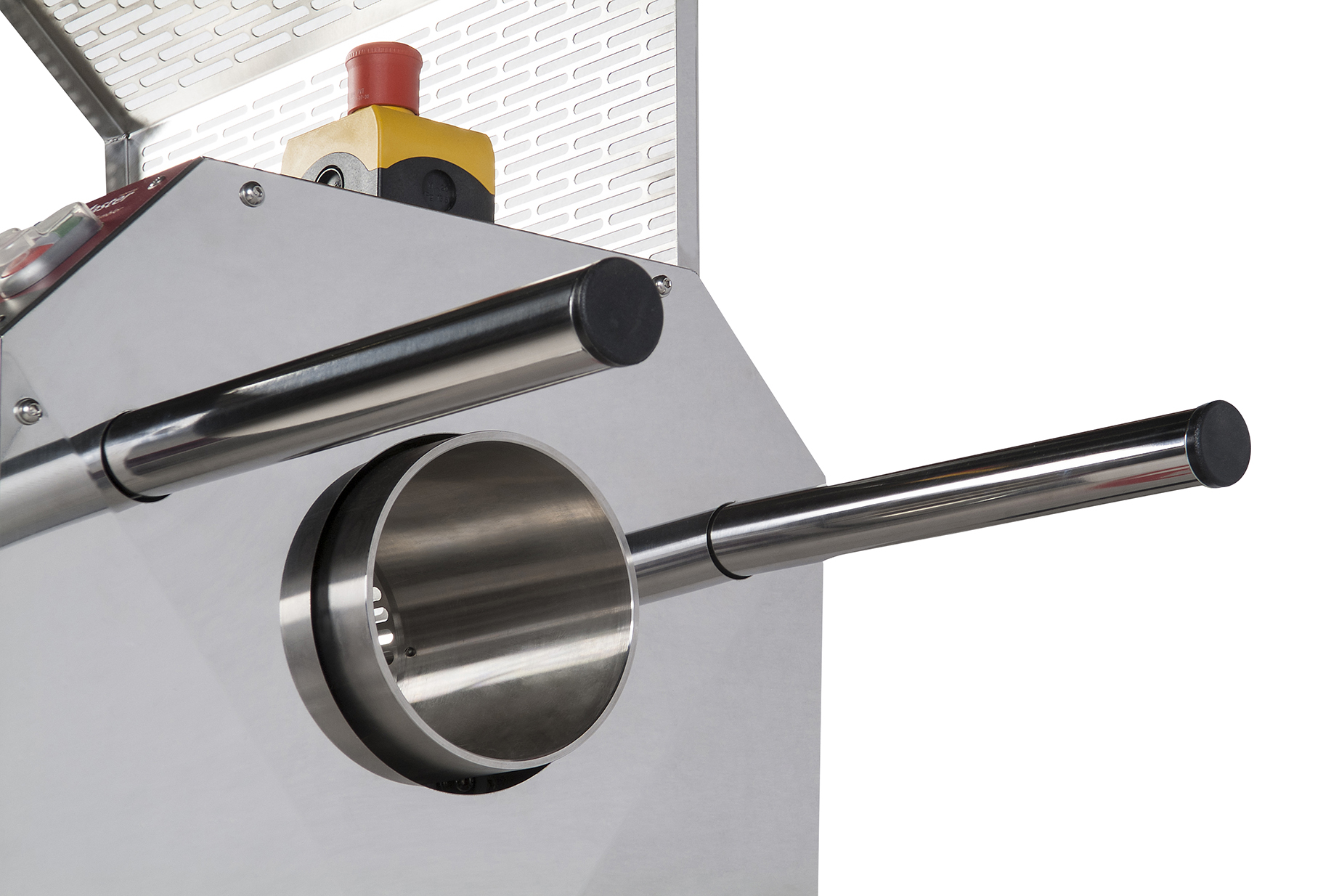

The large size of the 304 stainless steel tube prevents the accumulation and traction of the flowers, while maintaining their quality. The stainless steel blade for non-stick food processing and the 11-blade roll capable of generating 320 pieces per second also contribute to maintaining the quality of the flowers. The static blade and the continuously rotating coil result in a clean cut equal to the quality of a manual cut.

Fresh or dry hairstyle

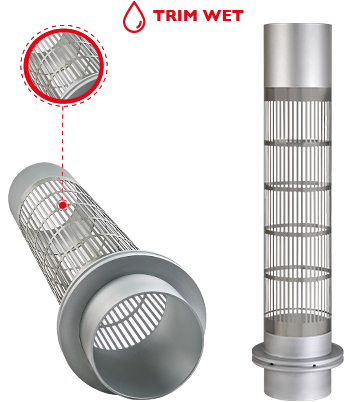

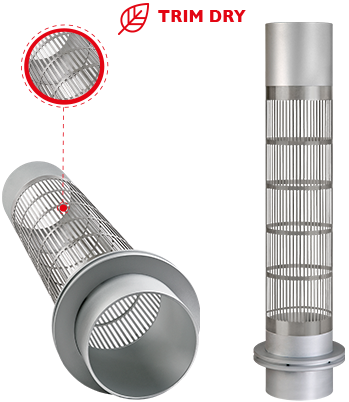

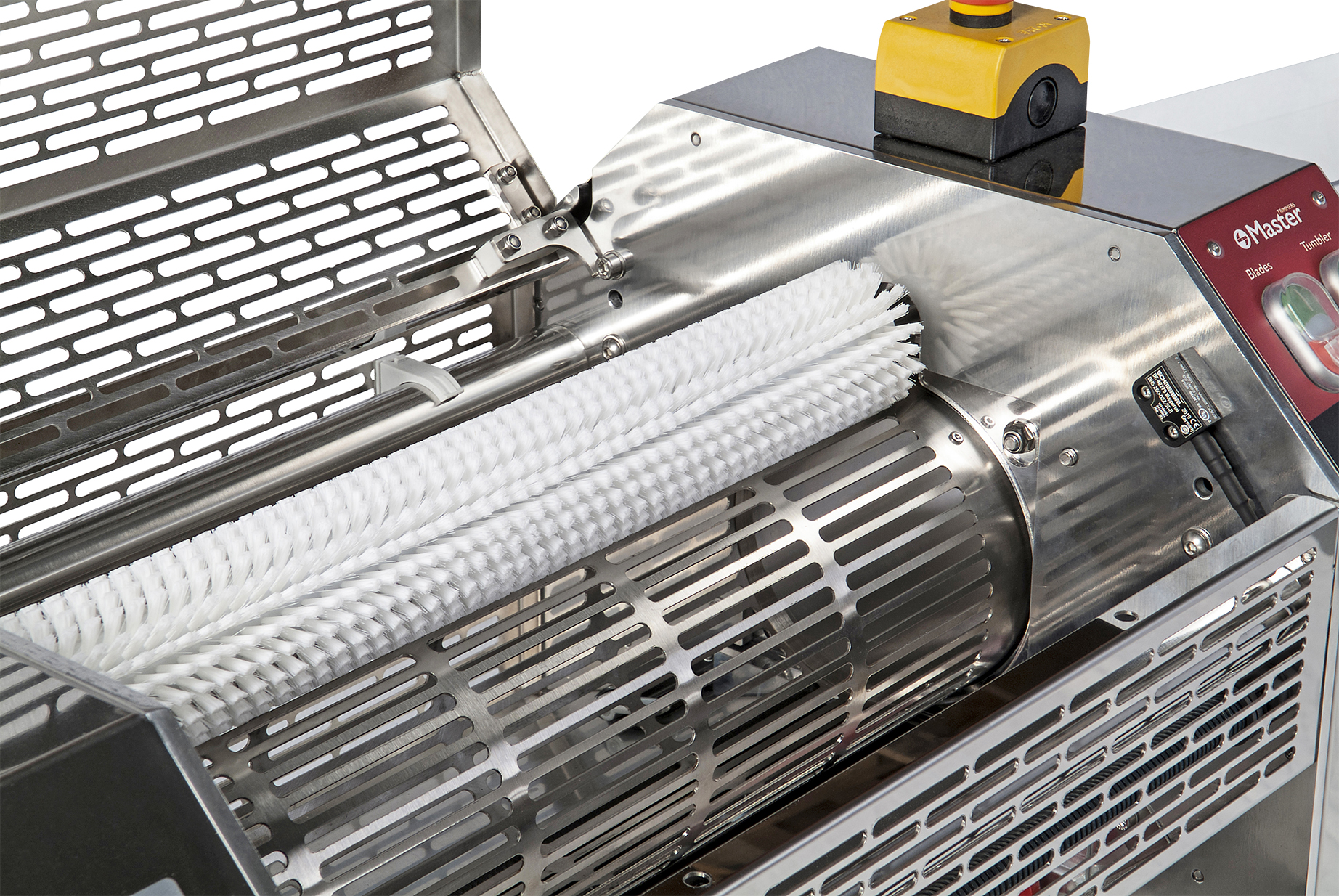

Barrel replacement

The design allows you to cut fresh and dry by simply changing the barrel. This can be done in seconds and without the need for tools.

MT Tumbler 500 MED includes the barrel needed to work with the fresh product by default. If you also need drums or just a drying drum, you must specify this when ordering a machine.

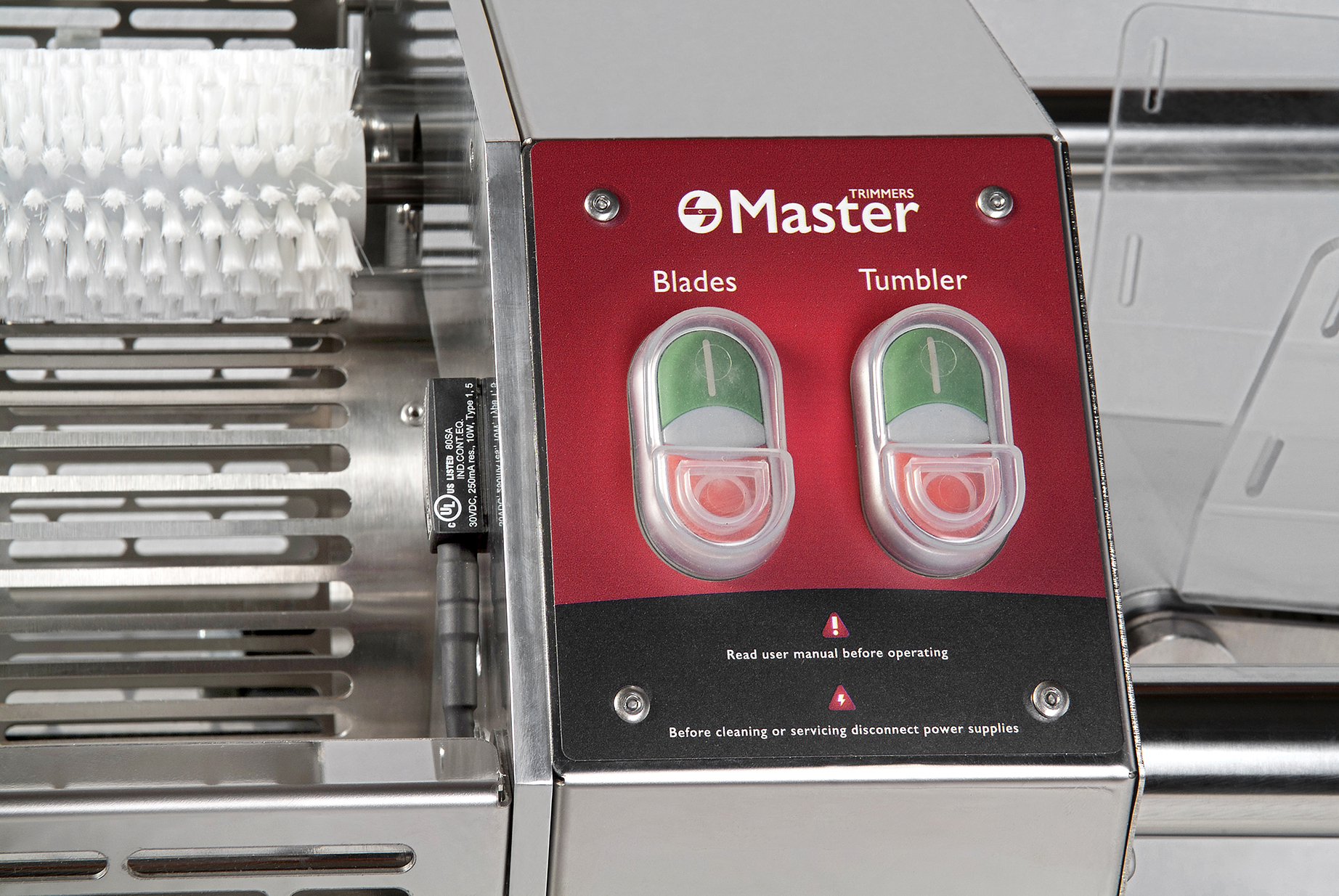

Reliable system

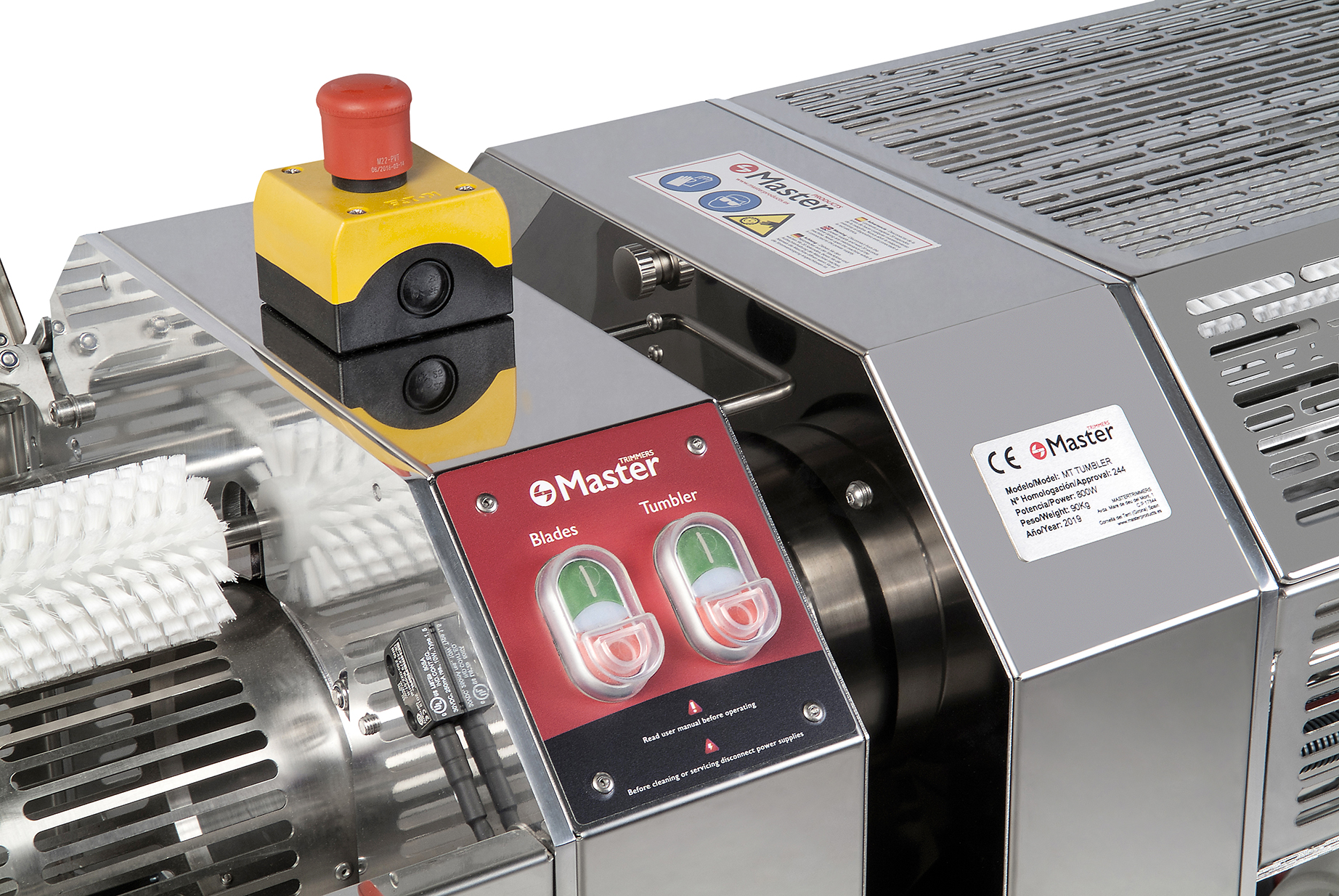

Electrical shutdown

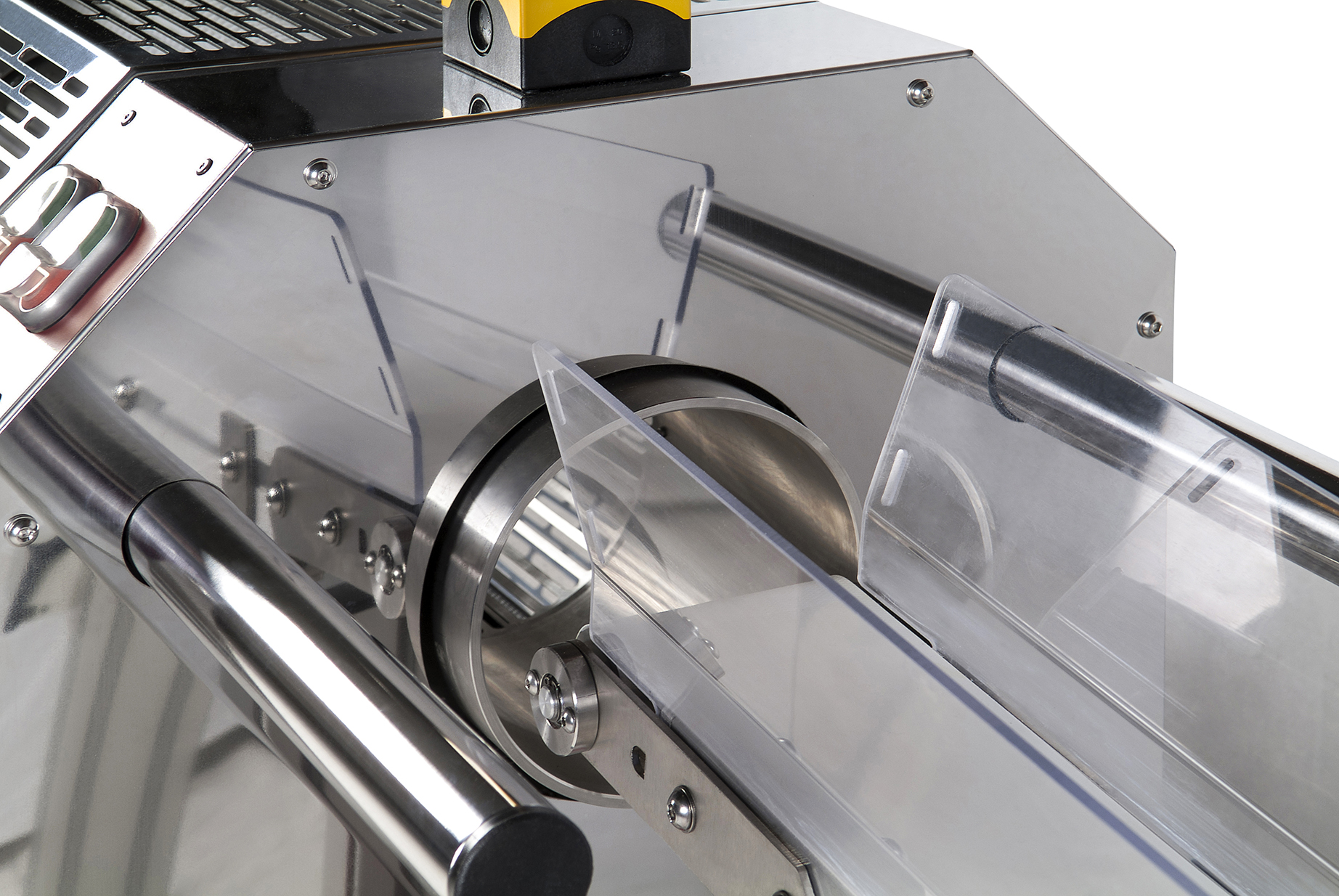

MT Tumbler 500 MED has a security system that provides protection to the operator at all times. The design includes dual safety detectors: on the top and side cover. Built-in detectors require complete shutdown of the machine if the tumor is open during operation, avoiding a possible work accident due to improper use.

The trimmer also includes an emergency brake located on the top to quickly stop the machine.

Waterproof

Easy maintenance

Basic trimmer maintenance takes a maximum of 10 minutes without the need for tools. All parts of MT Tumbler 500 MED are waterproof. Therefore, complete cleaning of the machine with hot water under pressure can be performed in complete peace, followed by subsequent disinfection with Master Clean completely.

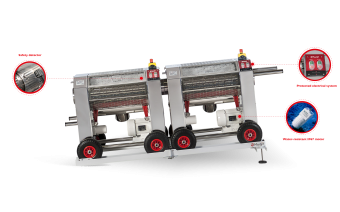

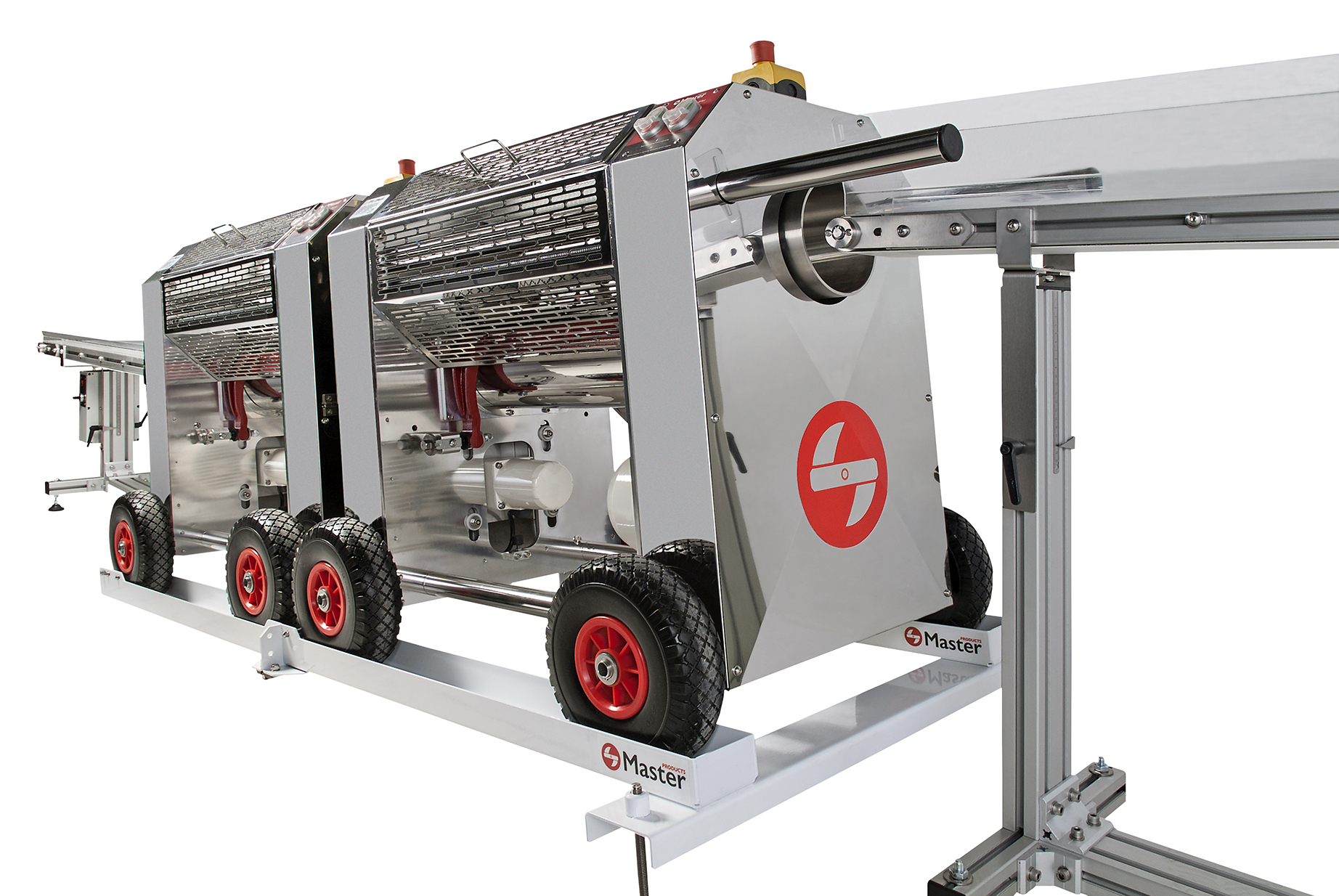

Complete MT Tumbler 500 MED system Due to its mechanical characteristics, the MT Tumbler 500 MED achieves high speed, delivering the working equivalent of 40 operators. The trimmer is also designed to be fitted together with another machine of the same model, increasing production, maintaining quality drug use, and maintaining safety for licensed manufacturers.

It is important to buy rails so that you can give the tandem the desired inclination. Depending on the condition and qualities of the product to be worked on, the rails can give the tandem more or less inclination.

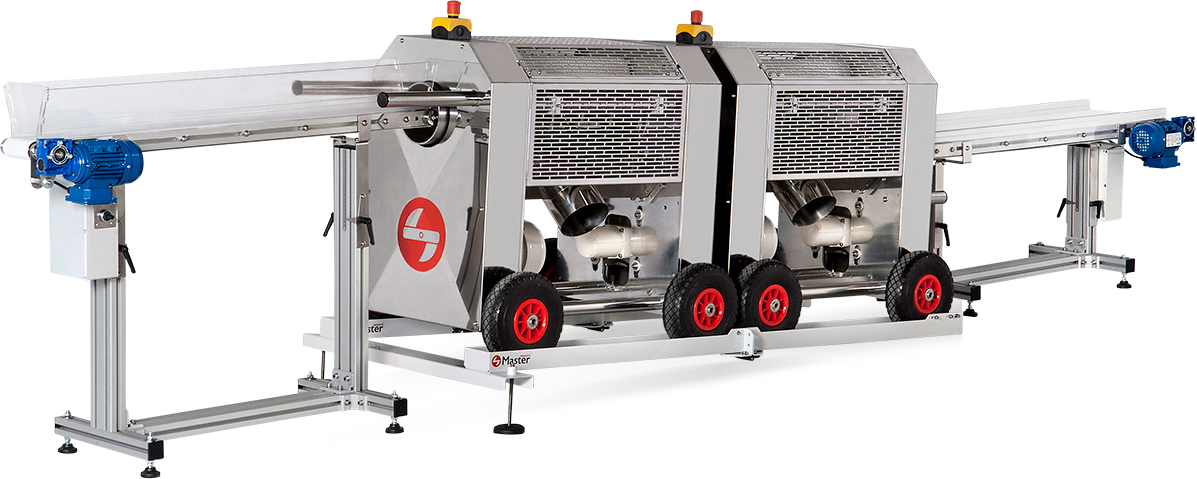

Conveyor belts

Input and output

The addition of an input conveyor belt enables automation and increased productivity of Tumbler models, achieving up to 30% higher output. Adding an exit belt provides a convenient quality control system when used with cruise control. The belts allow the identification of damaged flowers and / or pruning failure.

Both belts are certified for food use.

Leaf pickers

MT Tumbler 500 MES requires a leaf collector. Master Products offers two types of compatible leaf collectors:

* Do not forget to order a collector *

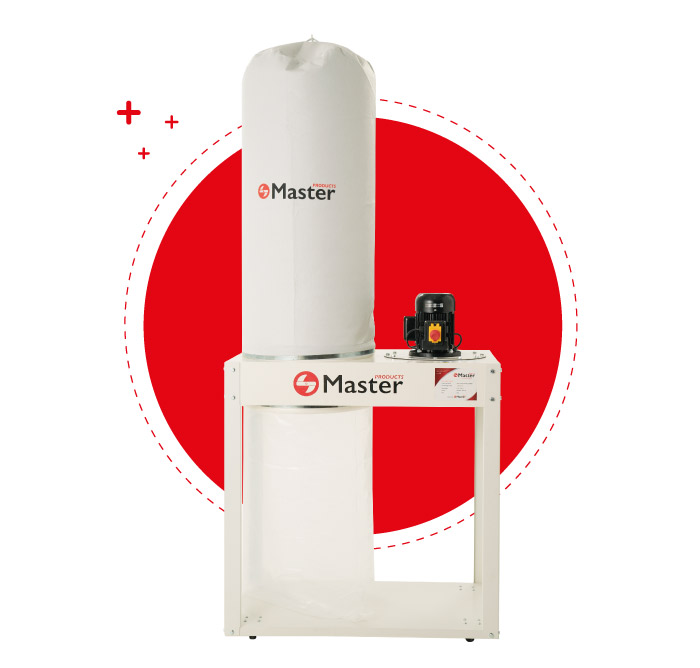

Option 1:

Standard leaf collector

2 hp engine to suck the leaves

Noise level 81 dB.

Easy to install

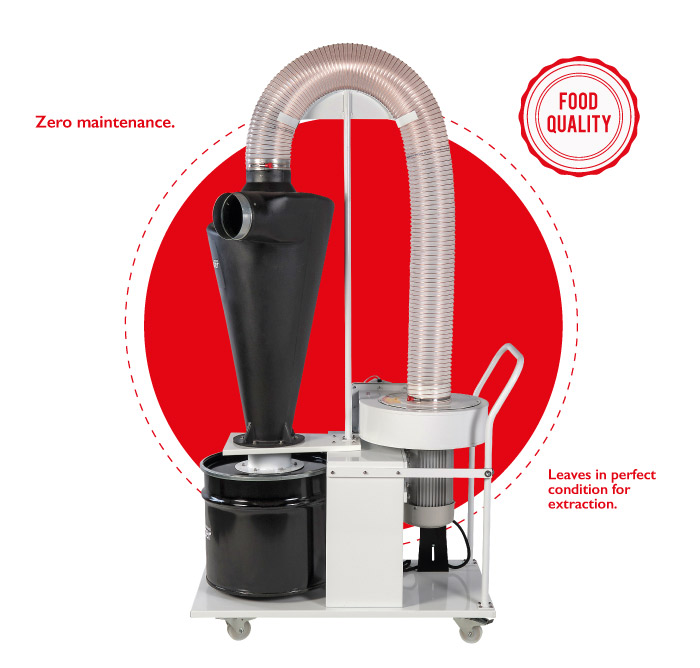

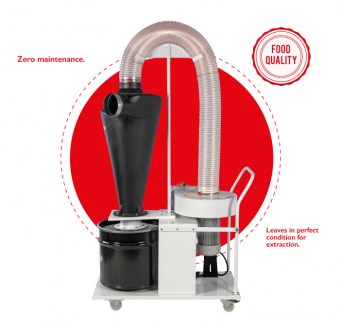

Option 2:

Cut the filter

Innovative cyclone release.

Powerful 3 hp input motor.

Noise level 79 dB.

The cyclone filter avoids the passage of leaves through the suction turbine.

Easy to install.

Technical specifications

Electrical data: 1,125 W / 230 V

Machine weight: 95 kg

Dimensions of the machine: 120 x 70 x 94 cm

Number of coil blades: 11

Blade power: 1.5 hp IP66 with air cooling

Barrel power: 40 W IP67

Material: stainless steel

Cuts per second: 320 pieces

Adjustable cutting height: up to 0.0010 m

Reliable system: yes

Warranty: 5 years

Noise level: 90 dB
