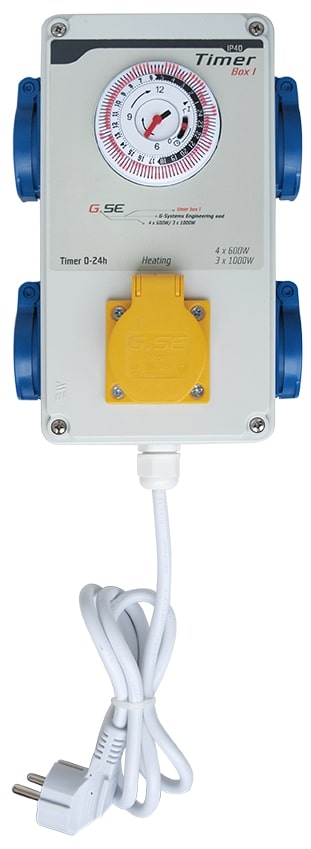

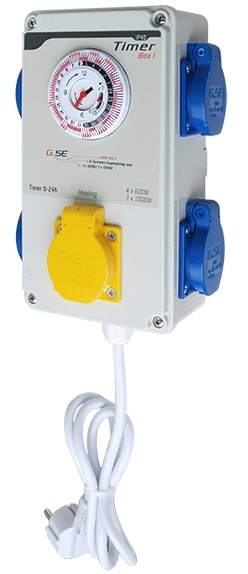

Timer box I

The timer box manages several inductive loads such as high pressure lamps simultaneously. It is a well-engineered contactor based on control system for up to 4x600W inductive loads controlled by a certificated and patented GSE-electronic. Timer box with heating socket is an intelligent product, it allows to heat when your lamps are off. (Power-management)

Sizes and technical data:
Housing: WxHxD = 115x228x75mm
Timer box: WxHxD = 150x240x97mm
Voltage: 230V / 50Hz
Amperage: 13A
Power: 3'000W
24 hour. 30min. Setting
Contactor: electronic
Protection class: IP20
