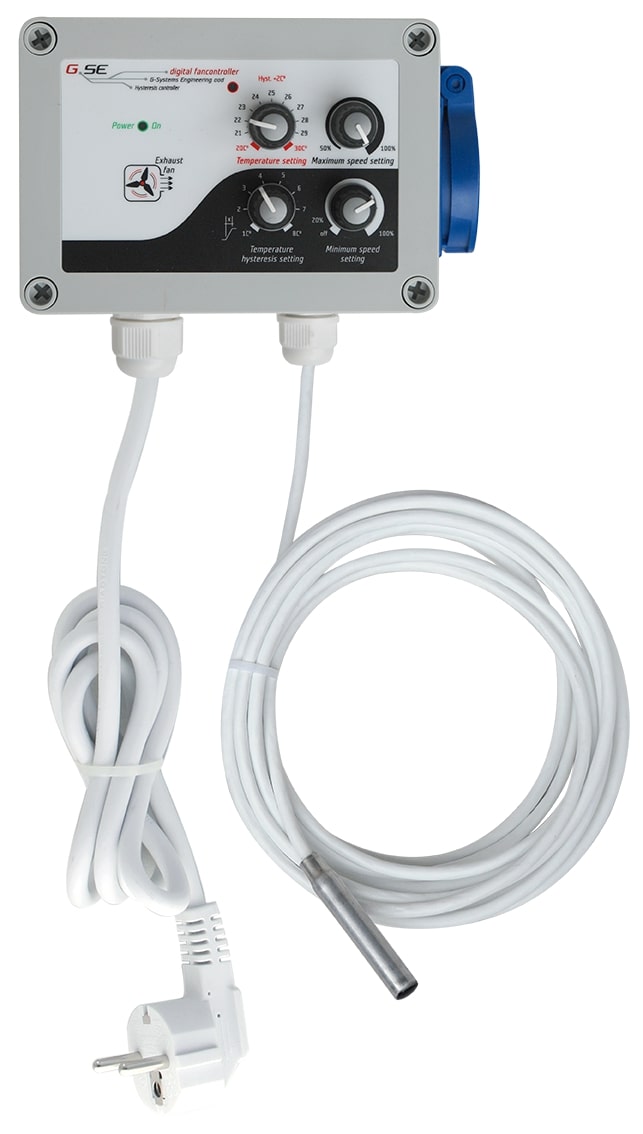

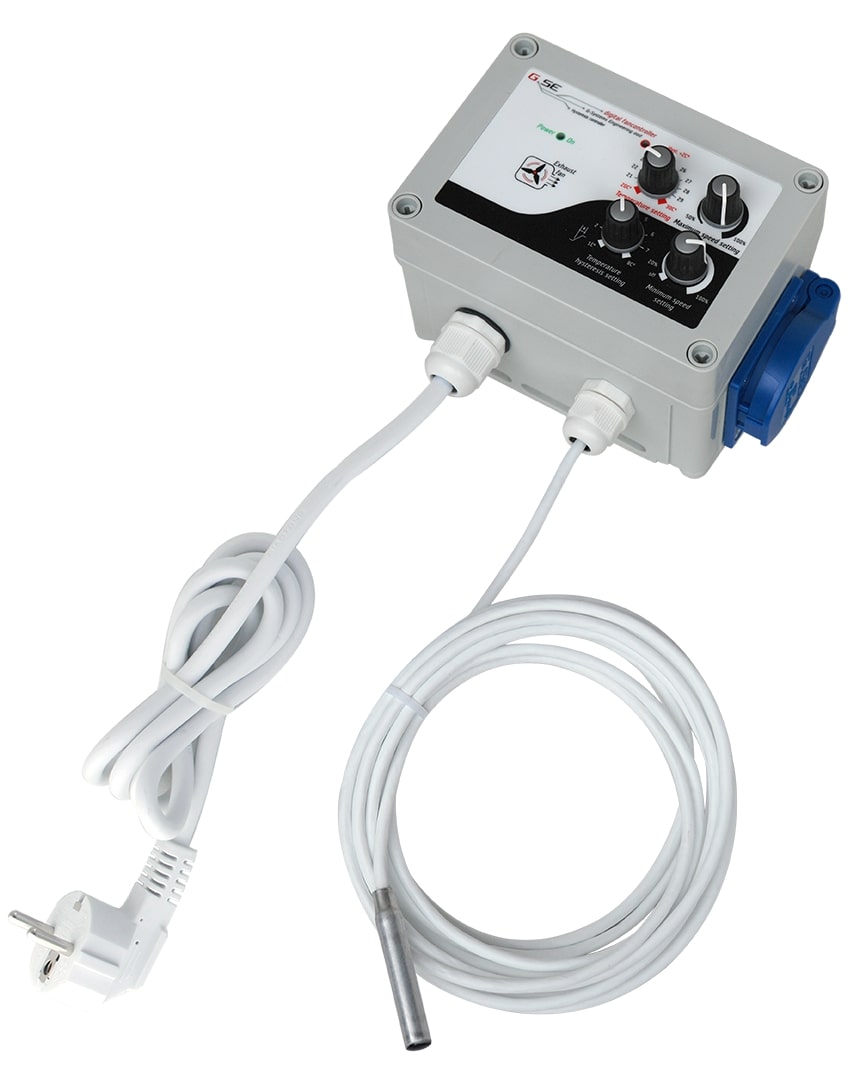

The Temperature, minimum-, maximum- speed controller with hysteresis setting is a temperature depended speed controller for ventilated rooms with one ore more fans. The controller keeps the temperature constantly and impedes to run under the set minimum-speed, as well to run over the set maximum speed. The hysteresis defines the temperature range. It can be easily controlled, adjusting the required temperature minimum-, maximum speed and hysteresis on four knobs.

The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable and can be extended up to 50meters.

Sizes and technical data's:
Case: WxHxD = 130x80x70mm
Controller: WxHxD = 160x100x90mm
Designed for: 1x600W / TRIAC 1x16A
Designed for: 1x2300W / TRIAC 1x45A
Volts: 230V / 50HZ
Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
0.5°C accuracy from –10°C to +85°C
Protection class: IP44
